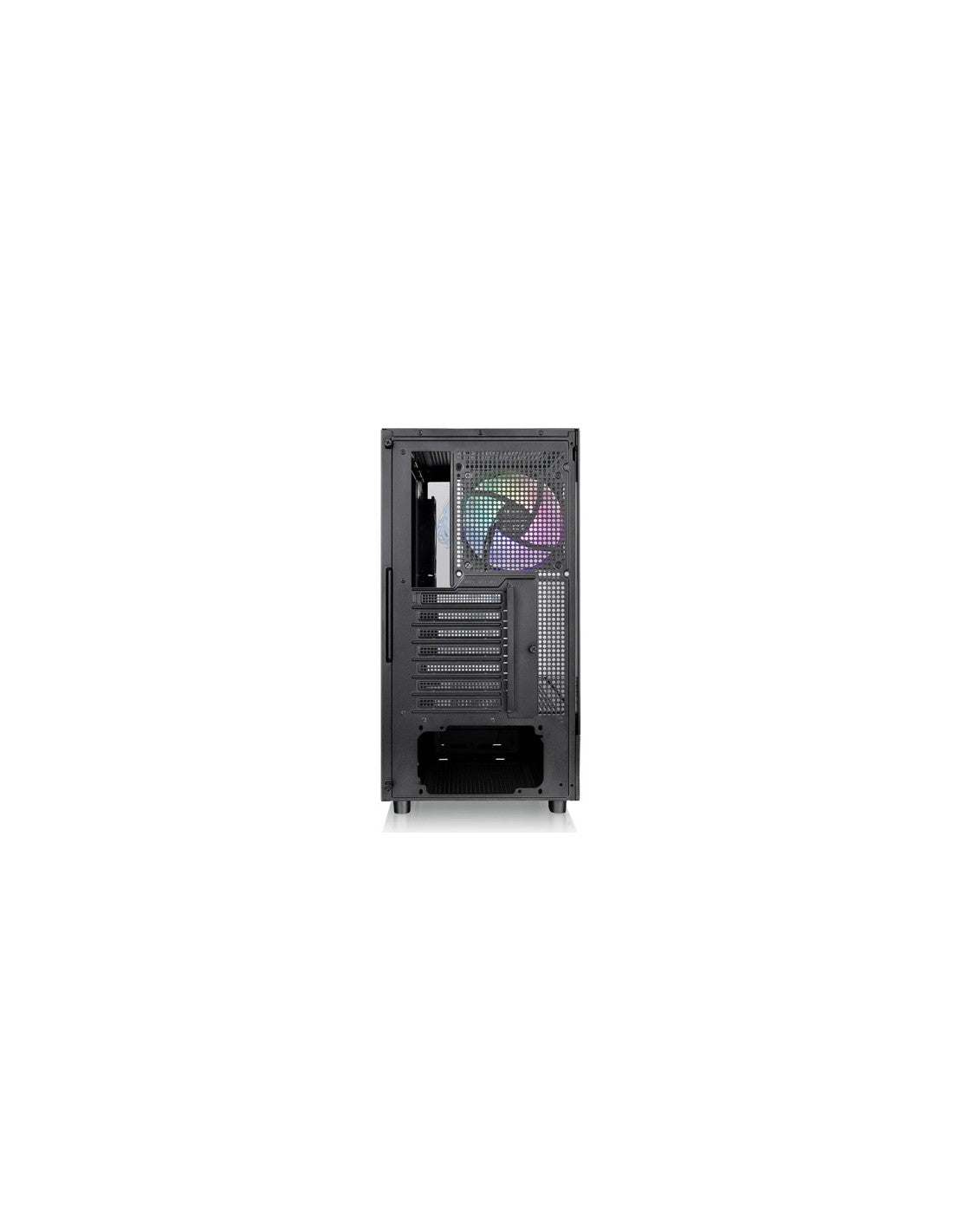

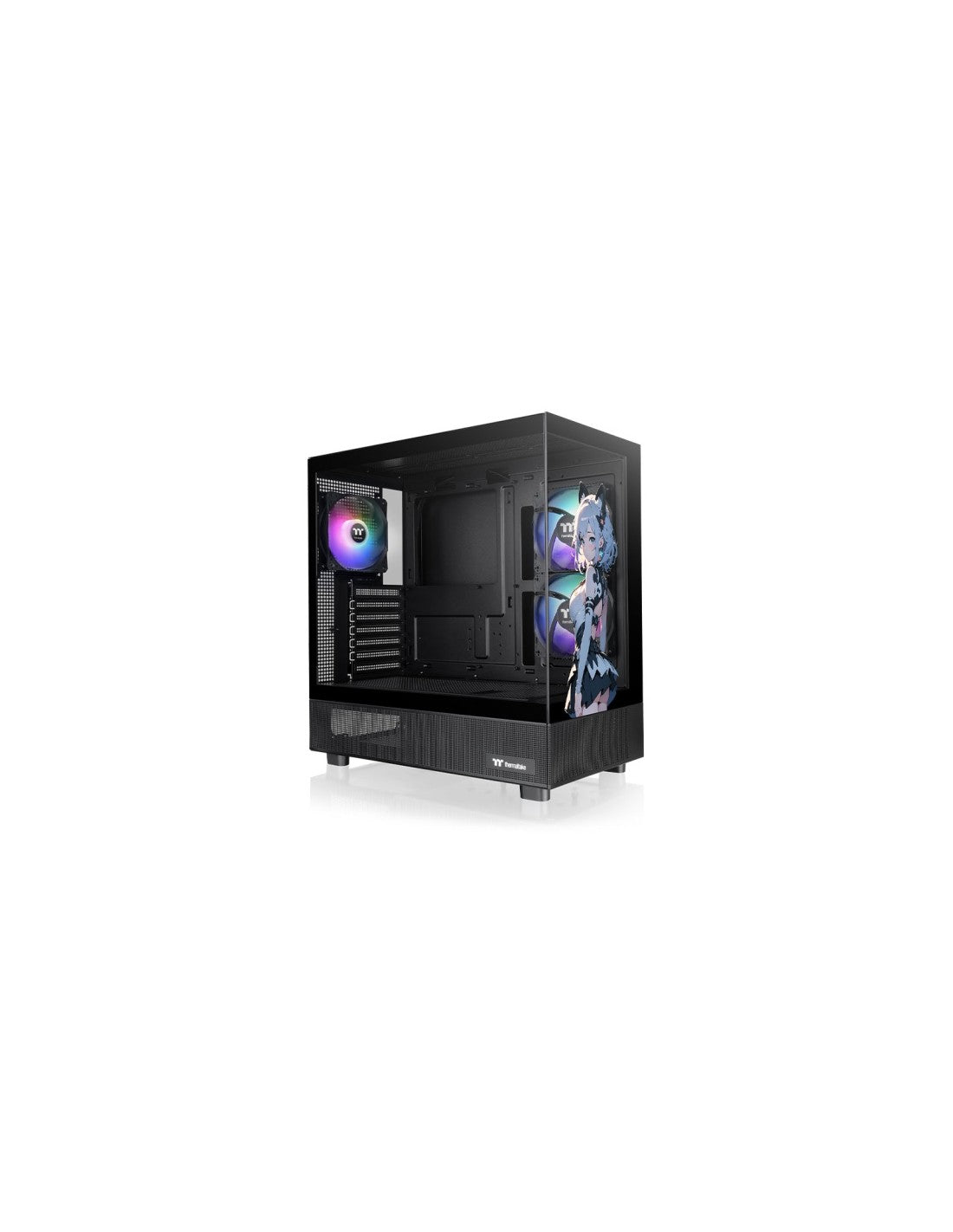

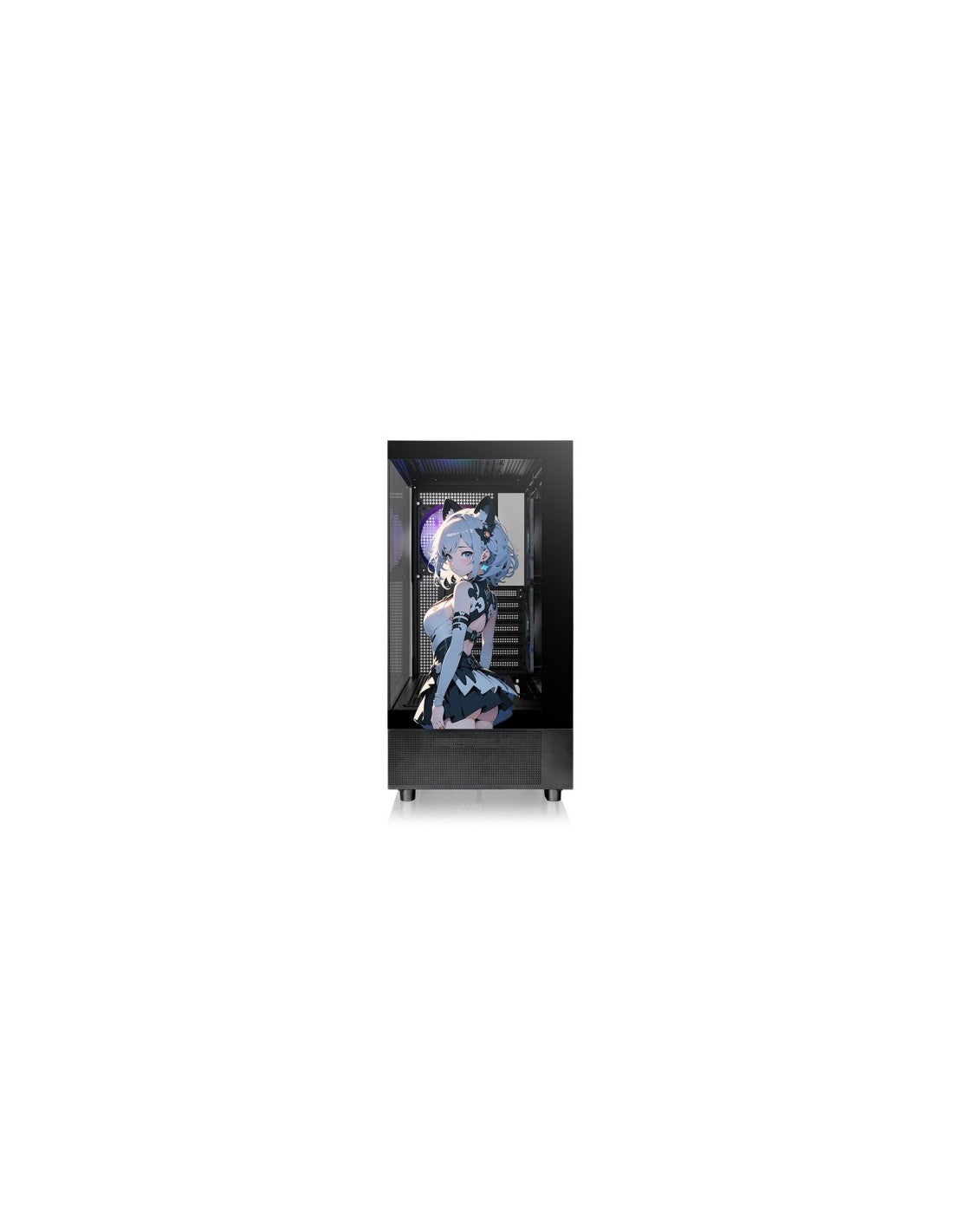

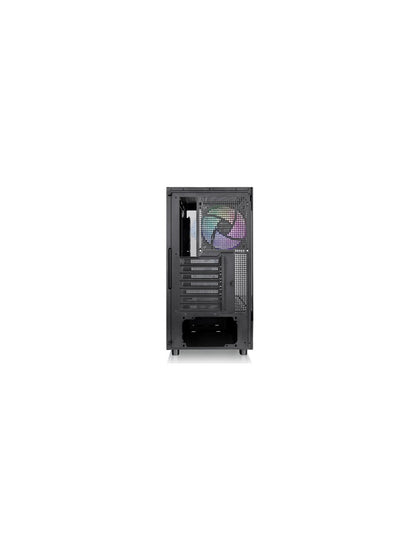

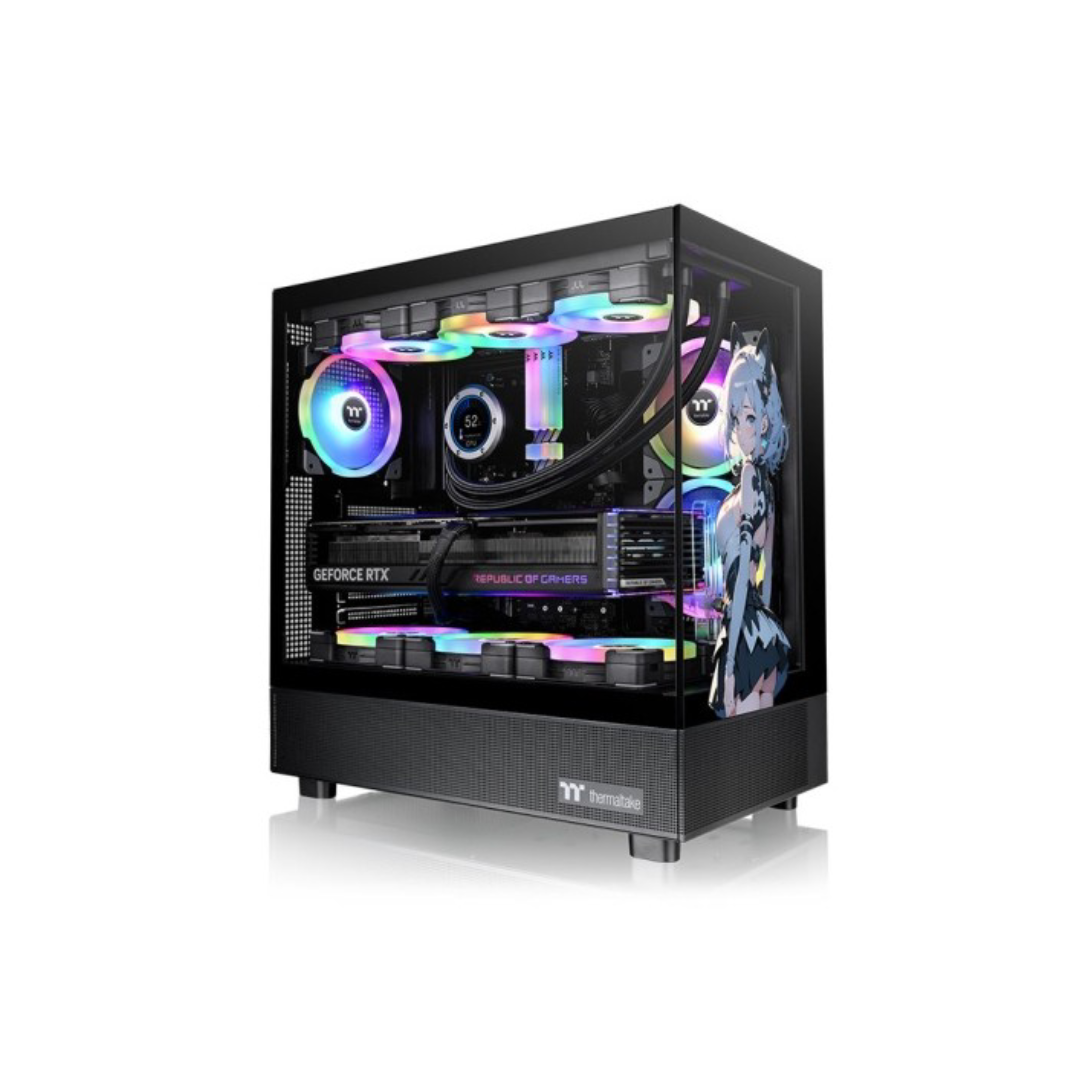

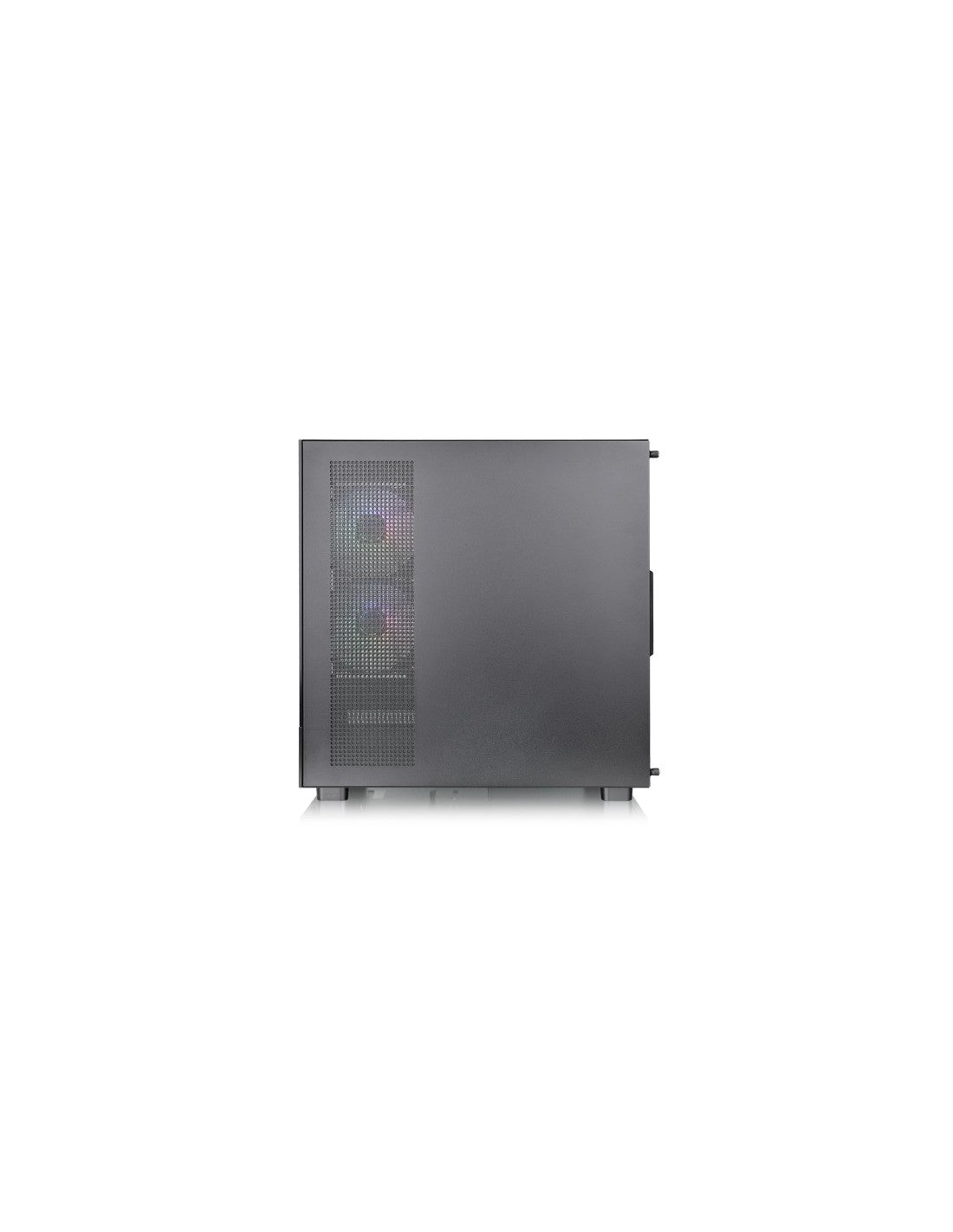

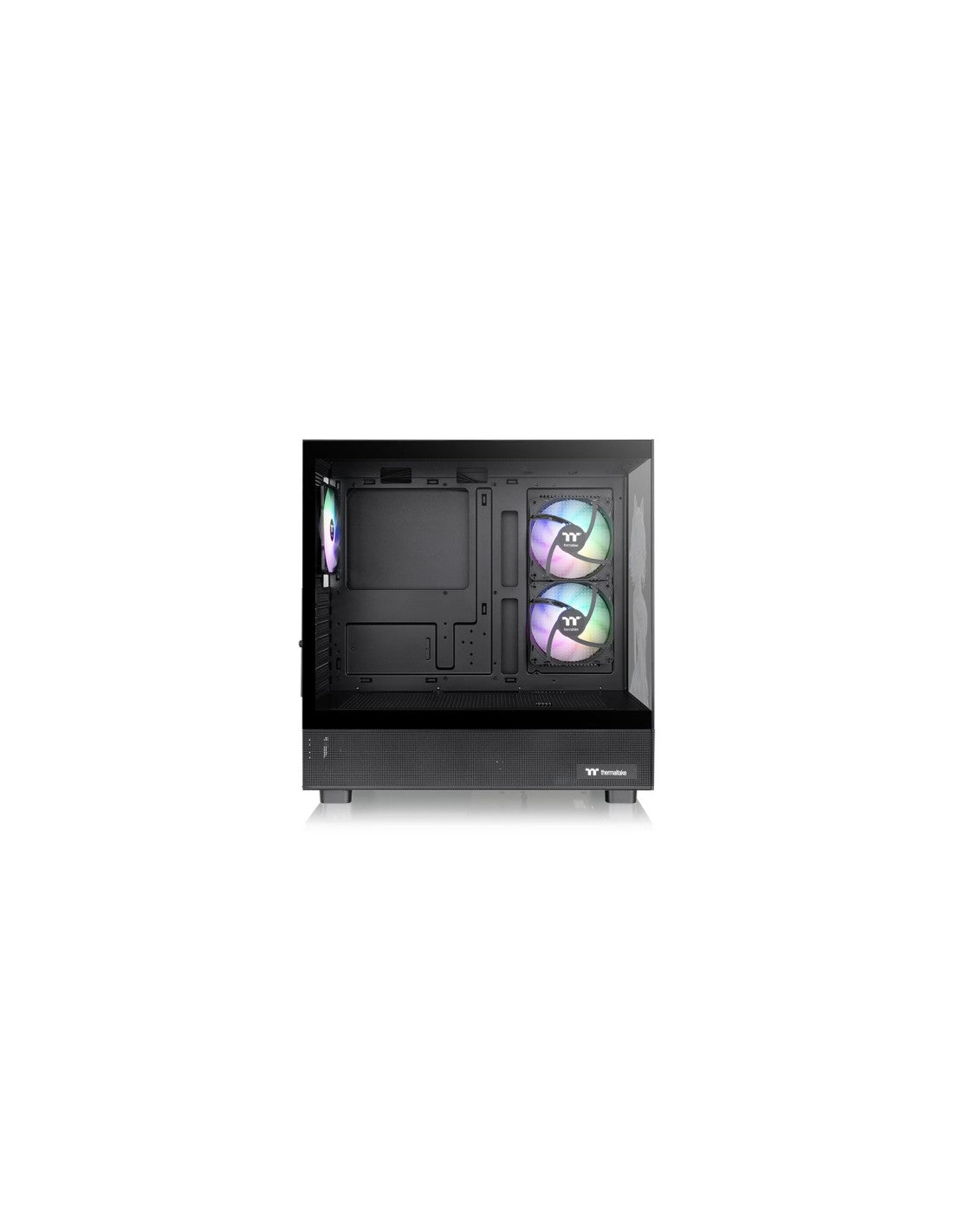

Costruito per offrire una vista straordinaria, il View 270 SP Edition Mid Tower Chassis è un case ATX dotato di un pannello frontale in vetro temperato, coperto da una grafica appositamente progettata e fornito con tre ventole ARGB Lite da 120 mm con cuscinetti idraulici preinstallate.
More Information
P/N
CA-1Y7-00M1WN-02
Series
Versa
Model
View 270 SP Edition
CASE TYPE
Mid Tower
Dimension (H x W x D)
456 x 230 x 454 mm (18 x 9.1 x 17.9 inch)
NET WEIGHT
6.35 kg / 14 lbs.
PANEL
Tempered Glass x 2
Color
Black
MATERIAL
SPCC
COOLING SYSTEM
Right(intake): 120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 2
Rear(exhaust): 120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 1
Drive Bays
2 x 3.5”, 1 x 2.5” or 2 x 2.5”
EXPANSION SLOTS
7
MOTHERBOARDS
6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 13” (E-ATX)
I/O Port
USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1
PSU
Standard PS2 PSU (optional)
FAN SUPPORT
Top: 3 x 120mm, 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm Right (M/B Side): 2 x 120mm, 1 x 120mm Rear: 1 x 120mm, 1 x 140mm Power Cover: 3 x 120mm, 2 x 120mm, 1 x 120mm
RADIATOR SUPPORT
Top: 1 x 360mm, 1 x 240mm, 1 x 120mm Rear: 1 x 120mm
CLEARANCE
CPU cooler max height: 180mm VGA max length: 420mm PSU max length: 220mm
