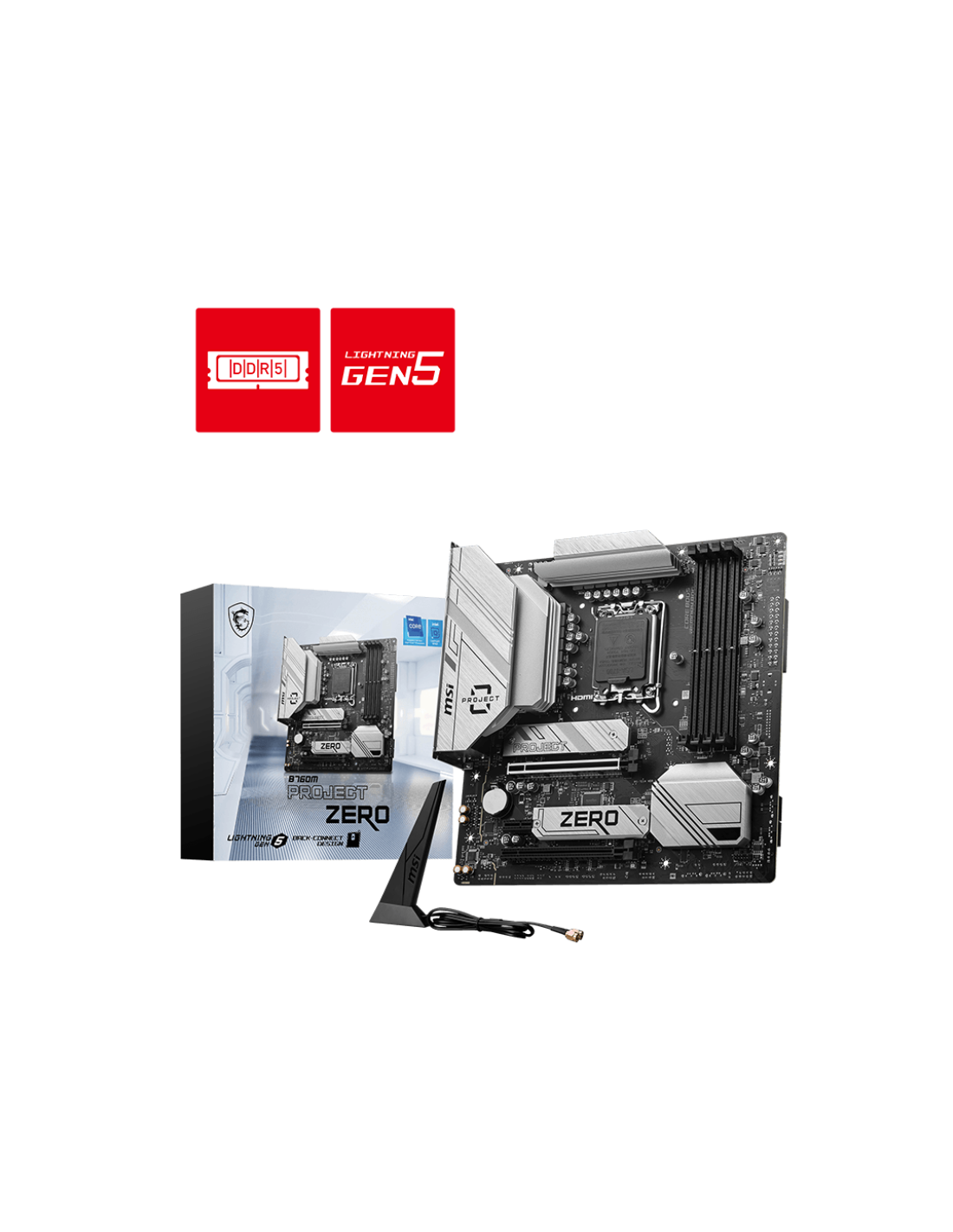

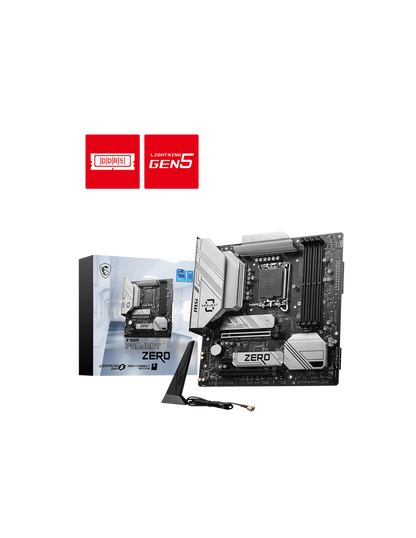

MB MSI B760M PROJECT ZERO Zero gestione cavi S1700
MB MSI B760M PROJECT ZERO Zero gestione cavi S1700
Prezzo di listino
€234,99 EUR
Prezzo di listino
Prezzo scontato
€234,99 EUR
Prezzo unitario
/
per
Imposte incluse.
Impossibile caricare la disponibilità di ritiro

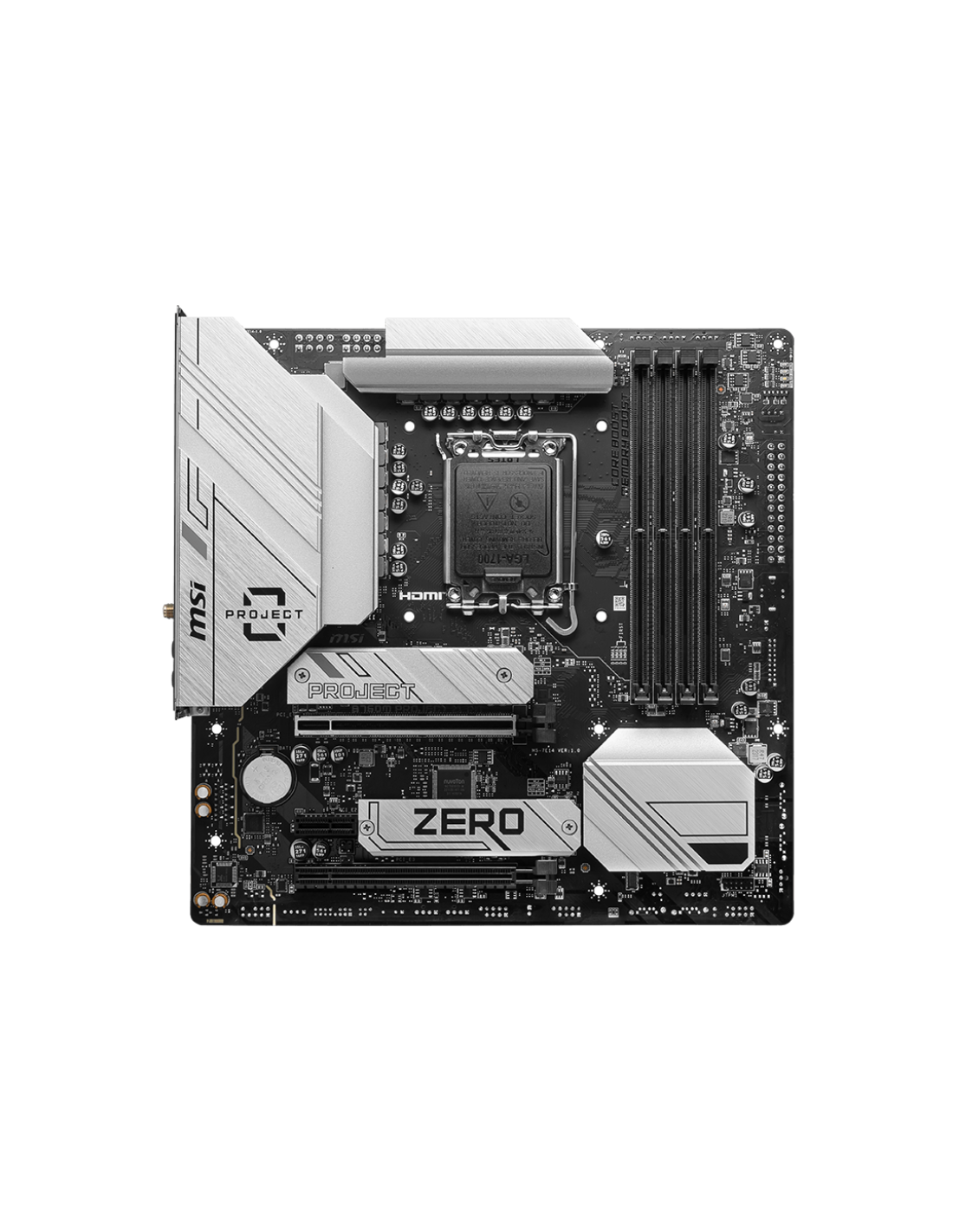

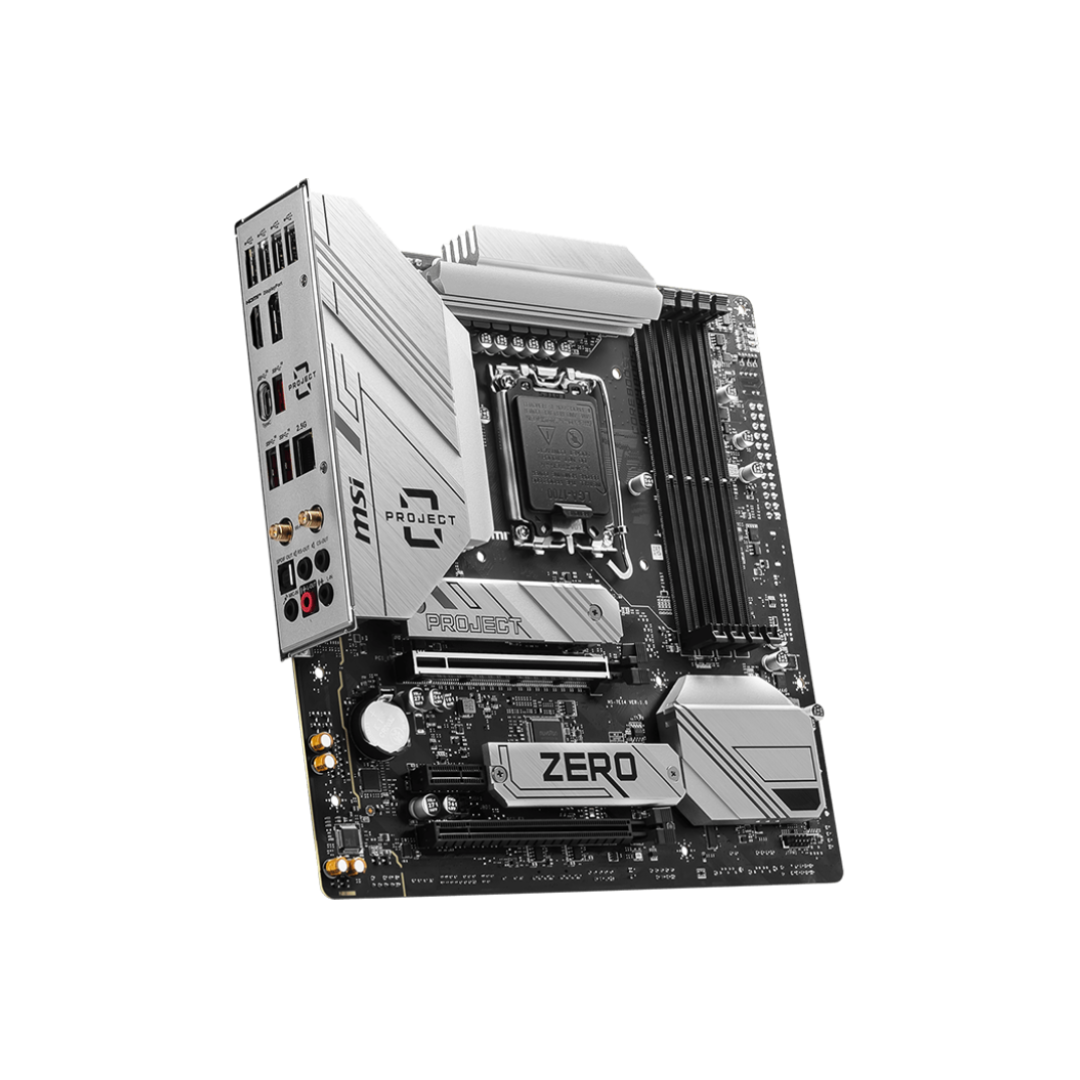

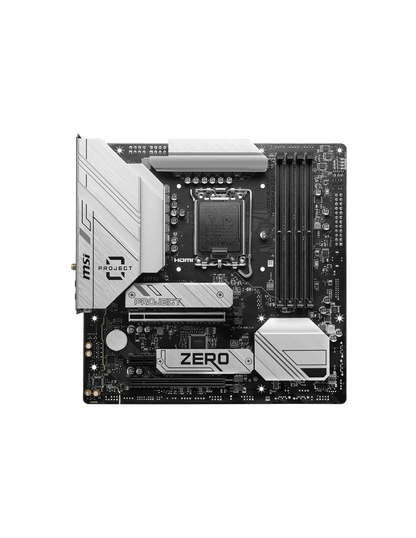

B760M PROJECT ZERO
Il B760M PROJECT ZERO è caratterizzato da un esclusivo design di connessione posteriore che riduce la complessità della gestione dei cavi, con il risultato di un aspetto più ordinato ed esteticamente gradevole del sistema. È compatibile con i processori Intel 14°/13°/12°, supporta DDR5 ed è dotato di una soluzione LAN 2,5G e Wi-Fi 6E. Questo la rende una scelta eccellente tra le schede madri mATX.
| Chipset | INTEL B760 |
| CPU | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors |
| LGA1700 | |
| Memory | 4x DDR5, Maximum Memory Capacity 256GB |
| Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz | |
| Max. overclocking frequency: | |
| • 1DPC 1R Max speed up to 7800+ MHz | |
| • 1DPC 2R Max speed up to 6600+ MHz | |
| • 2DPC 1R Max speed up to 6400+ MHz | |
| • 2DPC 2R Max speed up to 5600+ MHz | |
| Supports Dual-Channel mode | |
| Supports non-ECC, un-buffered memory | |
| Supports Intel® Extreme Memory Profile | |
| Onboard Graphics | 1x HDMI™ |
| Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz* | |
| 1x DisplayPort | |
| Support DP 1.4, maximum resolution of 4K 60Hz* | |
| *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. | |
| Slot | 2x PCI-E x16 slot |
| 1x PCI-E x1 slot | |
| PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) | |
| PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) | |
| PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) | |
| Audio | Realtek® ALC897 Codec |
| 7.1-Channel High Performance Audio | |
| Supports S/PDIF output | |
| Storage | 2x M.2 |
| M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices | |
| M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices | |
| 4x SATA 6G | |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| USB | 4x USB 2.0 (Rear) |
| 4x USB 2.0 (Front) | |
| 2x USB 5Gbps Type A (Front) | |
| 3x USB 10Gbps Type A (Rear) | |
| 1x USB 10Gbps Type C (Front) | |
| 1x USB 20Gbps Type C (Rear) | |
| LAN | Realtek® 2.5Gbps LAN |
| Internal IO | 1x Power Connector(ATX_PWR) |
| 2x Power Connector(CPU_PWR) | |
| 1x CPU Fan | |
| 1x Pump Fan | |
| 4x System Fan | |
| 2x Front Panel (JFP) | |
| 1x Chassis Intrusion (JCI) | |
| 1x Front Audio (JAUD) | |
| 1x Tuning Controller connector(JDASH) | |
| 2x Addressable V2 RGB LED connector (JARGB_V2) | |
| 2x RGB LED connector(JRGB) | |
| 1x TPM pin header(Support TPM 2.0) | |
| 4x USB 2.0 ports | |
| 2x USB 5Gbps Type A ports | |
| 1x USB 10Gbps Type C ports | |
| WIRELESS LAN & BLUETOOTH | Intel® Wi-Fi 6E |
| The Wireless module is pre-installed in the M.2 (Key-E) slot | |
| Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps | |
| Supports 802.11 a/ b/ g/ n/ ac/ ax | |
| Supports Bluetooth® 5.3, FIPS, FISMA | |
| * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. | |
| ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. | |
| LED FEATURE | 4x EZ Debug LED |

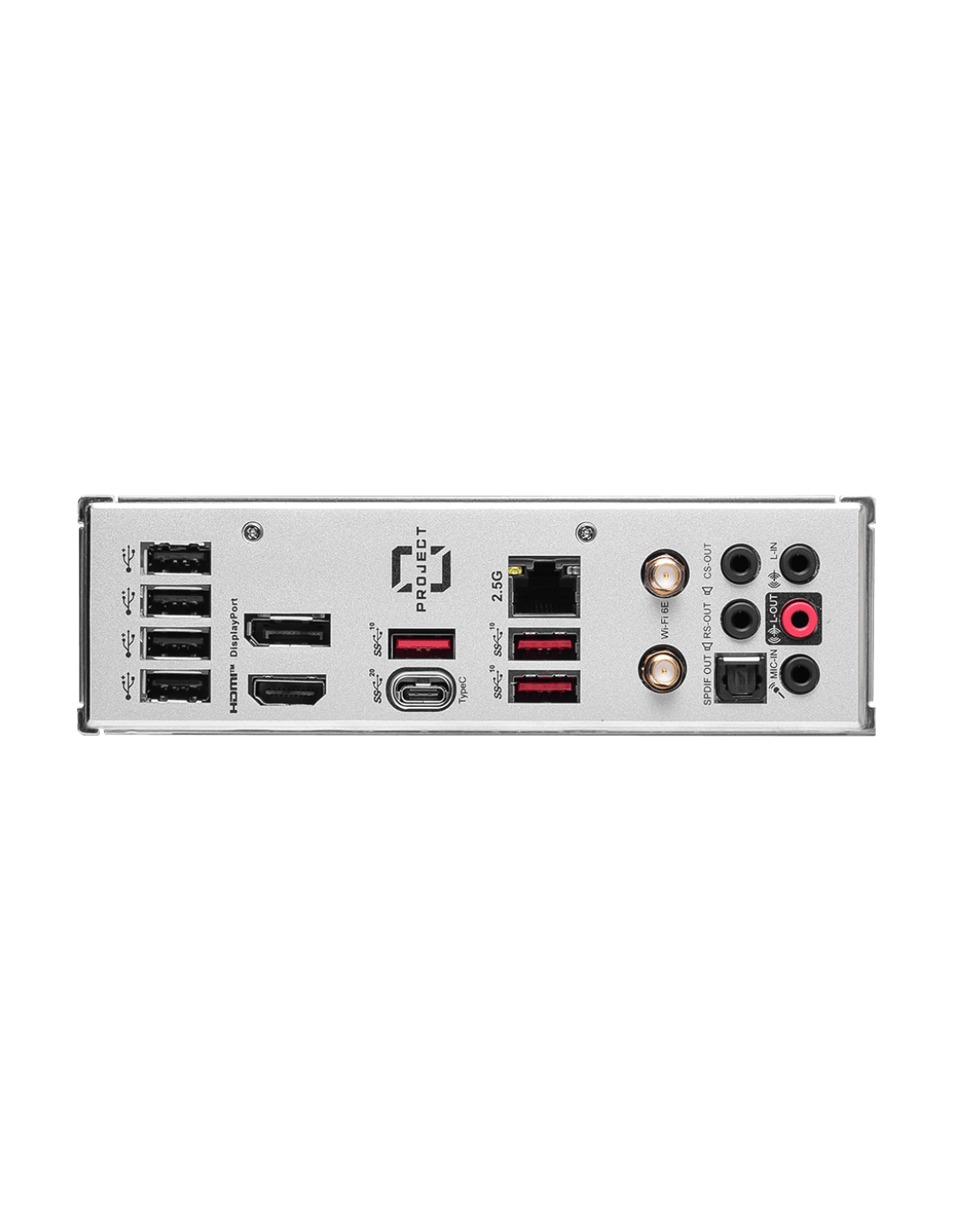

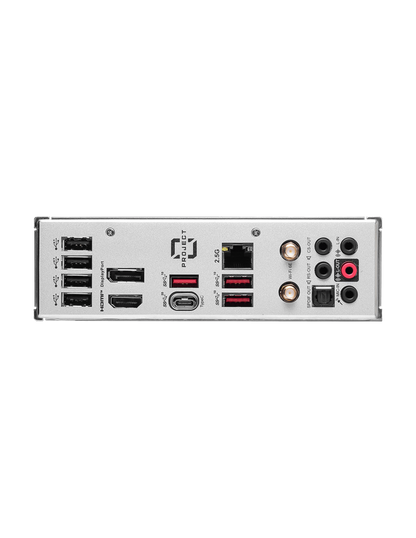

| BACK PANEL PORTS | |
| USB 2.0 | |
| DisplayPort 1.4 | |
| USB 10Gbps Type-A | |
| 2.5G LAN Port | |
| Wi-Fi / Bluetooth Antenna | |
| HD Audio Connectors | |
| HDMI™ 2.1 Port | |
| USB 20Gbps Type-C | |
| Optical S/PDIF OUT | |
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
